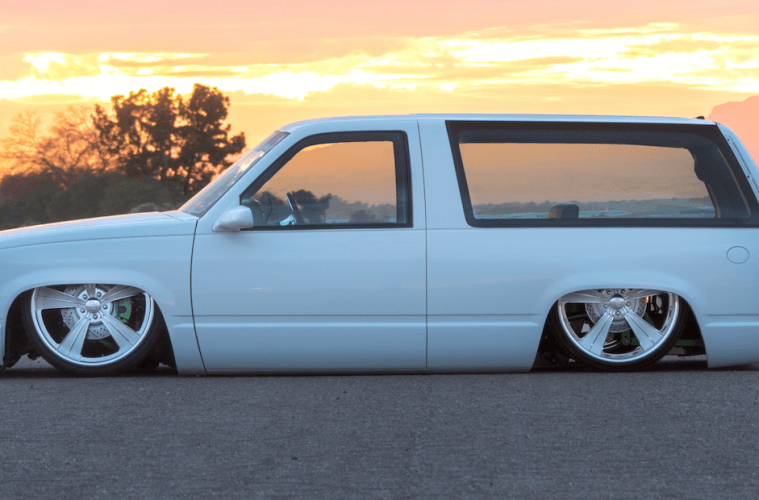

‘HOE DOWN – Bodydropped ’99 Chevy Tahoe

Drop It Like It’s Hot

1999 WAS A HECK OF A YEAR FOR PEOPLE WHO LIKE RAD STUFF. “The Matrix” was released, Tony Hawk landed the first 900, the Yankees won the World Series for the 25th time and the “South Park” movie finally came out. There were some bad times, too, though. Pam and Tommy got divorced, Y2K had everyone in a panic, boy bands were everywhere and worst of all, the last two-door Tahoe rolled off the assembly line. We didn’t really know it at the time, but we were losing a legend.

BMW ALPINE WHITE WITH PAINTED GREEN ACCENTS WAS SCOTT’S COLOR OF CHOICE.

Some trucks just “do it” for us, and two-door GMT400-platform Blazers, Yukons and Tahoes are among our favorites. This generation has just aged so well that you almost can’t go wrong with whatever you want to do to them. Of course, it doesn’t hurt one bit when they’re slammed on big ol’ wheels!

And we’re not alone. Scott Sapio of St. George, Utah, is just as fond of them, and as he told us, “I’ve always loved the two-door Tahoes and just thought that this truck deserved to be built!” As you can see, however, he went beyond the typical “stop, drop and roll” combination of upgraded brakes, a lowered suspension and custom wheels. His ’99 Chevy Tahoe is an amazing example of what can be done with these now-classic rides, and no expense was spared in the build. In fact, once Scott finally took a look at all of the receipts once the Tahoe was done, he was into it about $65K!

The first thing Scott decided to tackle was the ride height, and for that he chose one of Arizona’s best known and most well-respected shops, Tre 5 Customs. Owner Jeremy Rice has had plenty of experience with two-door Tahoes and knew exactly how to bring Scott’s ride down the right way. The right way, as is often the case, was ‘bags and a body drop! The problem is that, unlike with a typical truck, there’s no bed to pull off to make the job easier.

Nevertheless, Jeremy had things planned out in advance and started mapping out and building a new three-quarters-length chassis on his frame table, retaining the front one-quarter of the factory frame. The front end also received a set of Stone Fab control arms (which also centered the front spindles in the wheelwell), Slam Specialties SS7 airbags and a bunch of modifications to lay out the front over the 24-inch Intro Vista II wheels. The rear required a ton of work as well, with a custom-built main 4-link that uses triangulated lower links, along with a pair of rear-facing leveraged link bars with Slam Specialties SS7s for tons of lift. An AccuAir e-Level system with ENDO VT air management system and Viair 444C compressors providing the air needed to operate the suspension.

THE FACTORY FUEL DOOR WAS SHAVED OFF IN FAVOR OF A MUCH MORE TRICK CUSTOM FILLER. IT MAY BE A SMALL DIFFERENCE TO SOME, BUT DETAILS LIKE THIS ARE WHAT SETS SCOTT’S TAHOE APART FROM THE REST.

Tre 5 also took great care when adding the front and rear wheel tubs to ensure that the interior of the truck was properly sealed from the elements. They also installed the 14-inch AZ Pro Performance brake kits on the front and rear of the Tahoe. As you can see, Scott’s Tahoe was turning out to be something pretty special, but it’s all of the unseen stuff that is really indicative of how far he was willing to go. The entire chassis and its components are either painted or powdercoated, with great detail put into every part. Once Frank at Ikandy Paintworks took over, it was game on for his insane shiny stuff skills. The whole body received a plethora of mods, such as a bunch of shaving and a Grant Kustoms roll pan. Scott’s color of choice was a bit surprising for a truck that is so wild—BMW Alpine White. However, when you see the total package and how it looks with the painted green accents, it just looks so right!

INTRO VISTA IIS ARE A MODERN-DAY CLASSIC, AND THE 24-INCH VERSIONS THAT SCOTT CHOSE FOR HIS TAHOE WERE THE PERFECT CHOICE TO KEEP THINGS LARGE AND IN CHARGE WHILE STICKING WITH A SIMPLE DESIGN.

Even the interior received a lot of painted love from Ikandy, and the upholstery (done by Steve at Elevated Design) has the perfect blend of innovation and class that just makes your jaw drop. The comfy original seats were retained, but now wear ultra leather, and the killer JL Audio sound system is surrounded by trick panels and mesh accents.

Once Scott’s Tahoe was done and finally ready to hit the streets a year after the build began, it quickly started collecting trophies at every show he took it to. In the end, it cost him two to three times what he originally thought it would, but we think that having one of the finest two-door Tahoes around was well worth the expense.

IT’S SO CLEAN! A TON OF WORK WENT INTO GETTING THE ENGINE COMPARTMENT SO TIDY, INCLUDING CUSTOM WHEEL TUBS AND A WHOLE LOT OF WIRE TUCKING. THE GREEN ACCENTS ON THE ENGINE GIVE THE PERFECT AMOUNT OF POP AGAINST THE BMW ALPINE WHITE PAINT.



BMW ALPINE WHITE WITH PAINTED GREEN ACCENTS WAS SCOTT’S COLOR OF CHOICE.

[divider]TRUCK SPECS[/divider]

OWNER

Scott Sapio
St. George, UT
1999 Chevy Tahoe

CHASSIS & SUSPENSION

  • Worked performed by Tre 5 Customs
  • New 2×4 frame from firewall back to achieve body drop
  • New custom body mounts and crossmembers
  • Stone Fab tubular control arms
  • Custom 6-link with triangulated lower bars, leveraged rearmounted bars
  • Slam Specialties SS7 airbags
  • AccuAir e-Level air management with ENDO VT valve/tank combo
  • Dual Viair 444C compressors
  • Custom fuel cell
  • AZ Pro Performance brakes with 14-inch rotors front and rear
  • ABS removed and replaced with residual valves and rear proportioning valve
  • Painted and powdercoated chassis
  • Narrowed rear axle housing
  • 3.73:1 gearing with limited slip

WHEELS & TIRES

  • 24×9 and 24×10 Intro Vista II billet aluminum wheels
  • Nexen 275/30ZR24 tires

ENGINE & DRIVETRAIN

  • Work performed by Tre 5 Customs
  • Rebuilt factory 5.7L Vortec engine, painted block
  • Tucked factory wiring
  • BBK ceramic coated headers
  • Custom air intake tube with Spectre filter
  • Custom TIG-welded stainless steel exhaust
  • Aluminum radiator with dual electric fans
  • Rebuilt original 4L60E transmission from Transmission Service Center, painted
  • TransGo shift kit
  • Custom two-piece driveshaft with carrier bearing

BODY & PAINT

  • Work performed by Ikandy Paintworks
  • Color-matched aftermarket grille with mesh inserts
  • Shaved handles all around
  • Shaved roof rack
  • Shaved gas door
  • Shaved cowl
  • Welded Grant Fabrication roll pan
  • Trimmed front bumper valance
  • LED headlights and taillights
  • Custom front and rear wheel tubs (by Tre 5 Customs)
  • Painted BMW Alpine White

INTERIOR & STEREO

  • Work performed by Steve at Elevated Design
  • ECU and fuse block relocated to interior (by Tre 5 Customs)
  • Factory seats reupholstered with ultra leather
  • Rear seat modified to fit between wheel tubs
  • Billet Specialties steering wheel
  • Smoothed and painted dashboard and interior panels (by Ikandy Paintworks)
  • Pioneer double-DIN head unit in custom bezel
  • JL Audio 6-inch component set in factory door locations
  • Custom sub enclosures with 10-inch JL Audio subwoofers
  • JL Audio amplifiers
  • LED accent lighting throughout interior
  • Air management covered with mesh inserts
